Smart Pot Urban Raised Bed

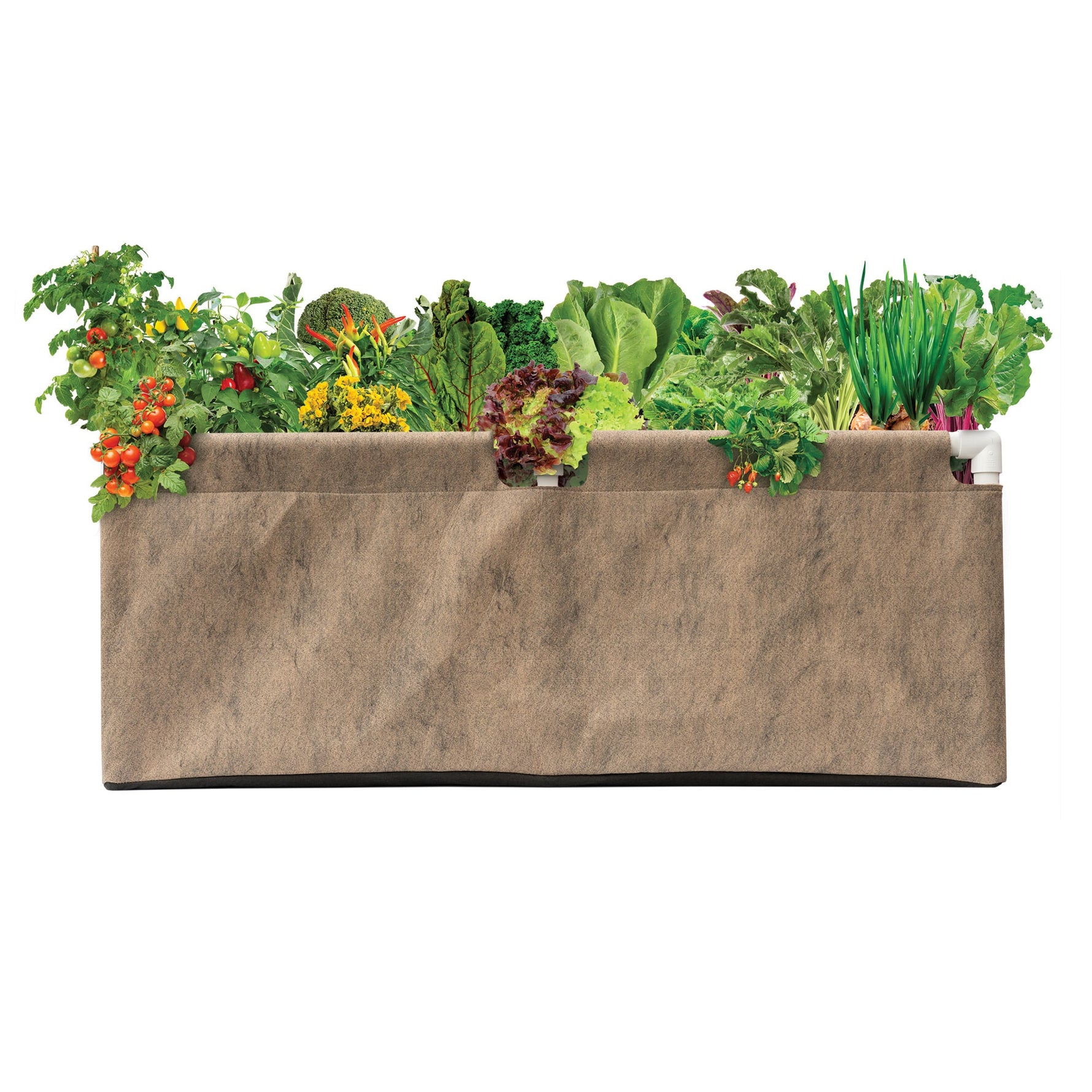

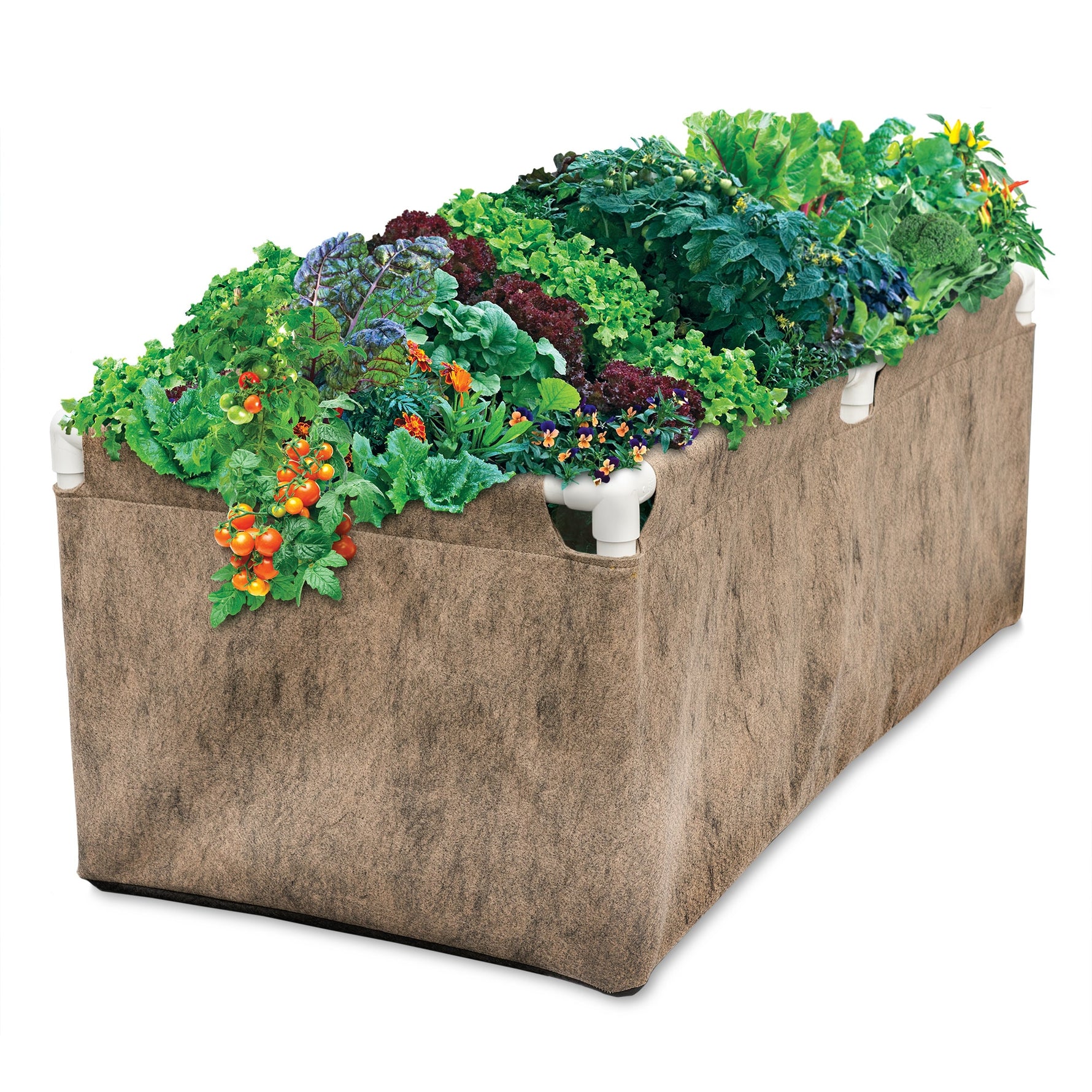

Maximize Your Outdoor Space with the Urban Raised Bed Garden

Smart Pot^® has you covered with our 2'x4' Urban Raised Bed Garden that's easy to set up. Grow fresh herbs, veggies, flowers, and fruits right off your patio, deck, or backyard.

• Easy Assembly

• Unfold, Fill & Plant

• Light Weight

• Heavy Duty & Extremely Durable

• Lead & BPA-free

• Amazing Results!

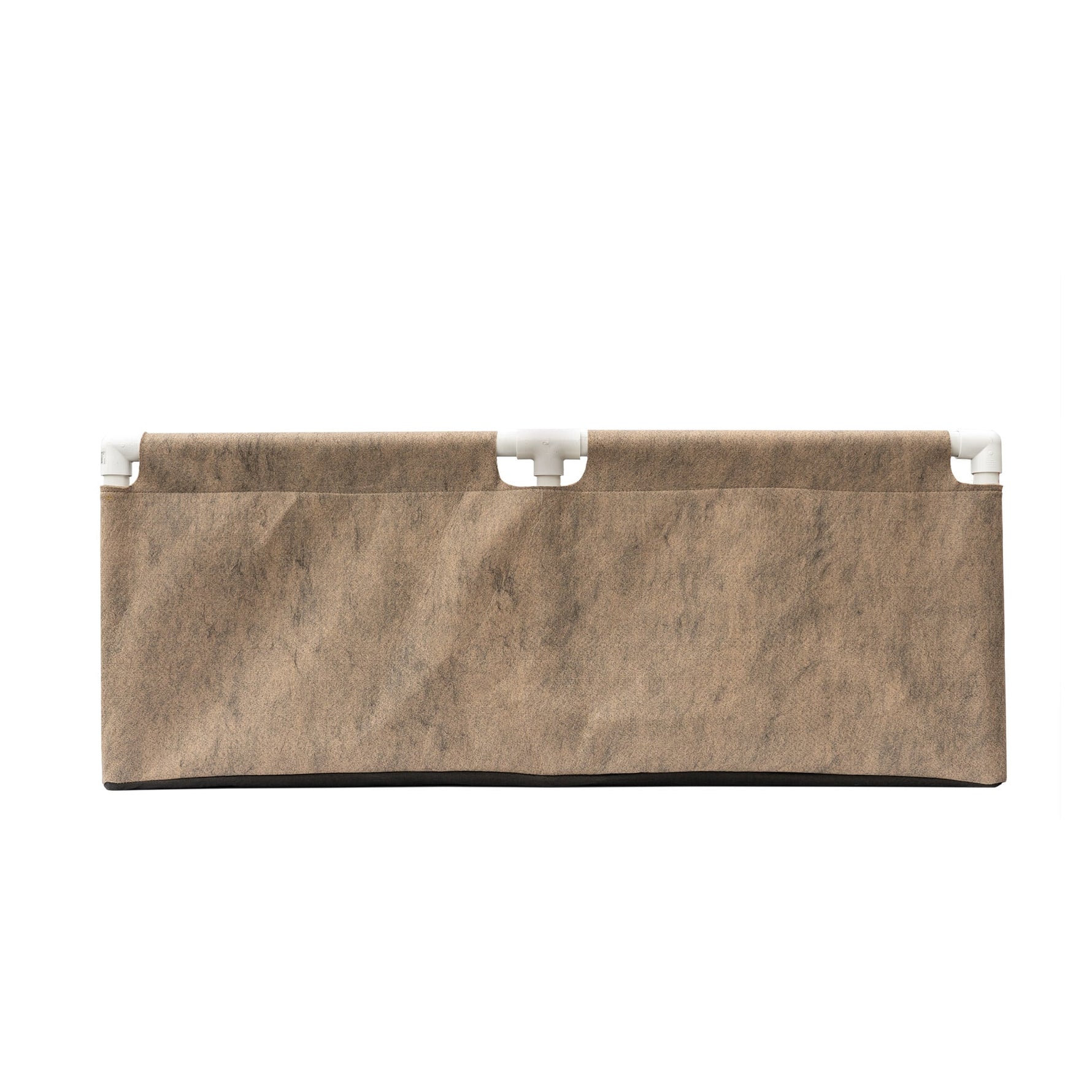

Your raised bed garden assembles in minutes! This container is designed with sleeves for sliding 1-inch PVC pipe into. The structure is completed with 3-way 1-inch PVC fittings at each corner.

Our Urban Raised Bed Garden requires less labor, time, and money than traditional wooden raised beds. In addition, the durable fabric is weather-resistant and will last for many years.

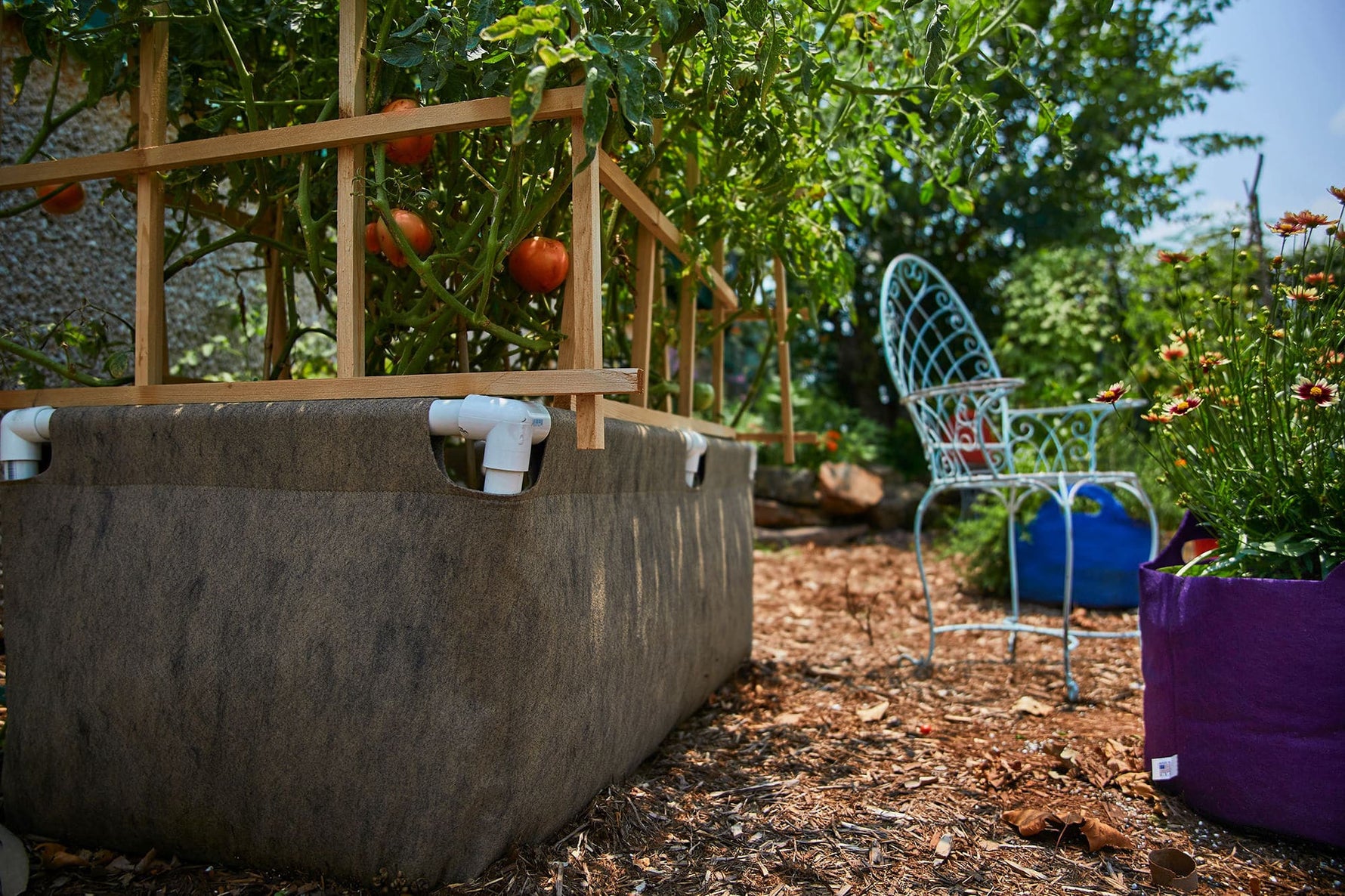

Want more gardening options? Install a trellis on the side for climbing vines like cucumbers, squash, zucchini, peas, and more.

Ideal Container Gardening on your Balcony or Small Garden

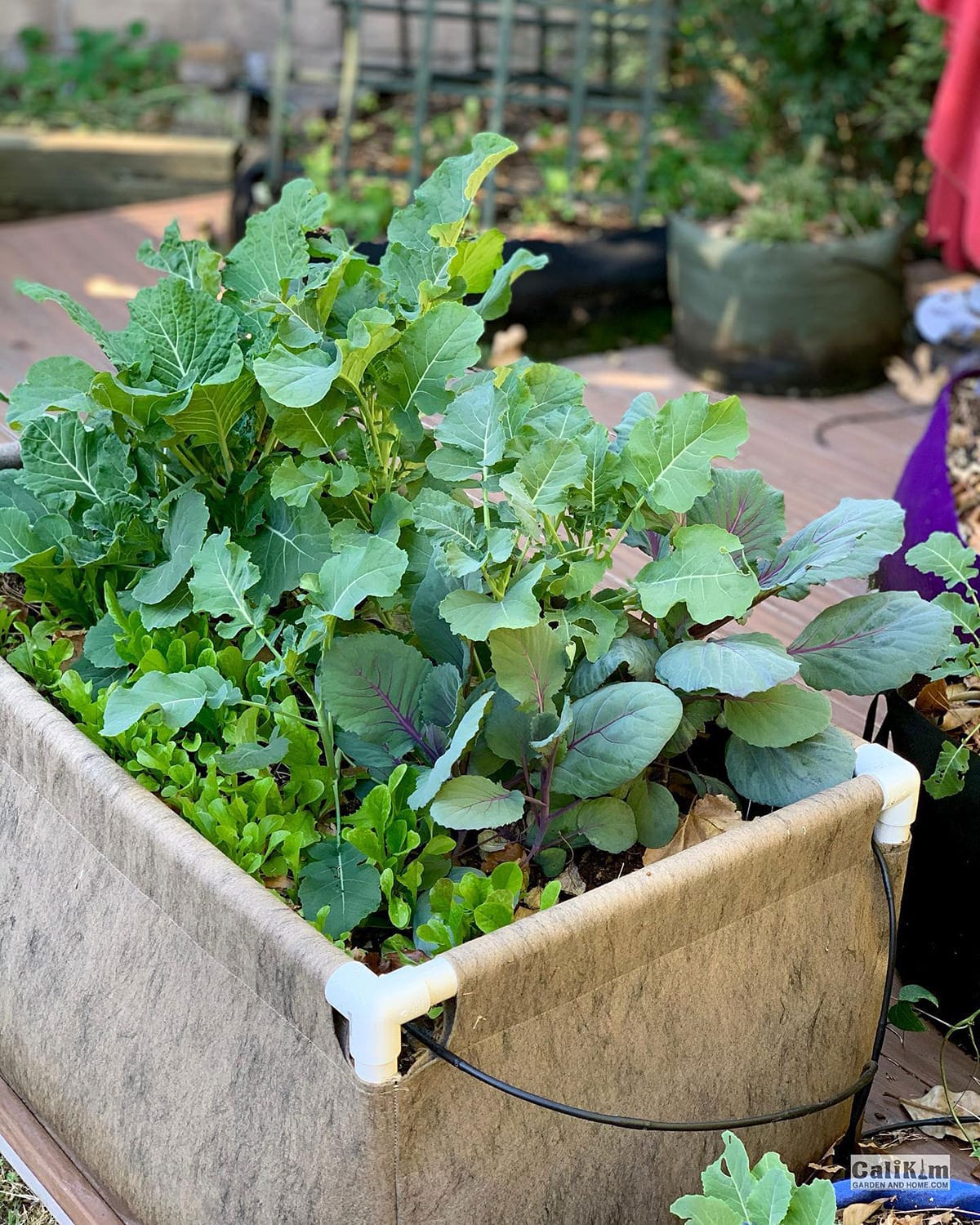

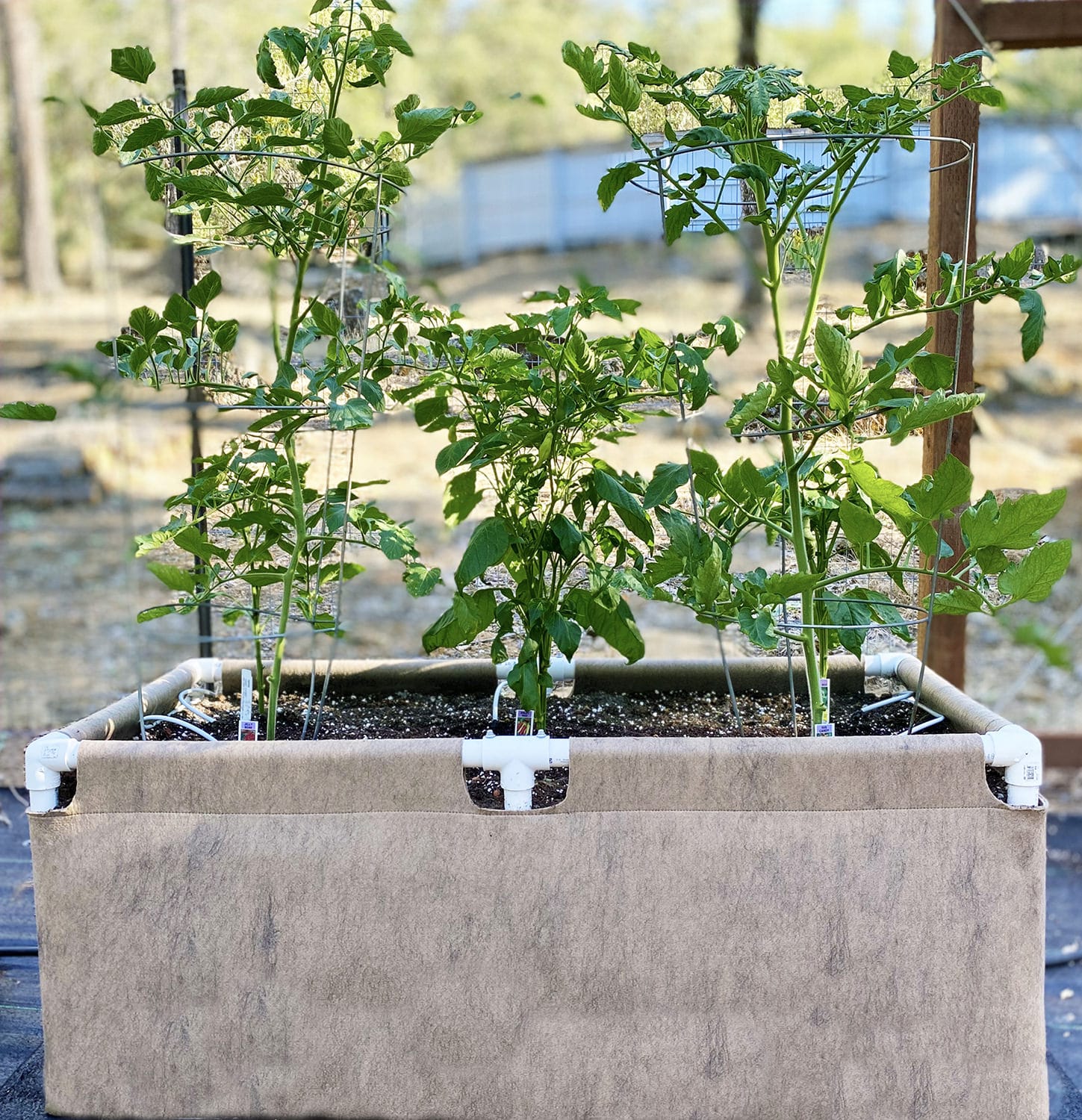

Tomatoes, leafy greens, root vegetables, and other edibles thrive in the Raised Bed Planter.

Step 1:

Consider the sunlight and growing conditions of the area where you will place your Raised Bed Planter.

Step 2:

What do you want to grow? Seed packets and ID tags of planting starters will provide guidelines for sunlight, soil type, depth, water, and fertilizer. Take these factors into account.

Step 3:

Reference the soil guide for how much soil to purchase.

Easy Set-Up

Location:

1. Place the Raised Bed Planter directly on the ground or on a hard surface such as a patio, roof, or driveway.

2. Make sure your plants get plenty of sunlight.

3. Remember, good lighting will help plant growth.

4. Place the Raised Bed Planter on a moisture barrier when gardening on a valuable outdoor surface.

Soil selection:

Use a good quality soil mix, medium or compost-ed soil. Ask your local garden center professional for a soil recommendation. This Raised Bed Planter will work with any soil mix, but better mixes mean better results.

Fill:

Make sure the bottom is flat. Pull up on the sides to eliminate wrinkles in the fabric. Fill to the top. You may want to add more mix after watering as the soil settles. Leave the top of the Raised Bed Planter open so you can top dress with fertilizers throughout the growing season.

Plant:

Plant your seeds or plant starts according to the recommendations on the packet or ID tag.

Water:

Water slowly and thoroughly - Water as needed.

Fertilize:

Fertilize as needed. This Raised Bed Planter works with all fertilizer programs.

Here's a list of what you will need and six easy steps to assemble it:

2'x4′ Urban Raised Bed

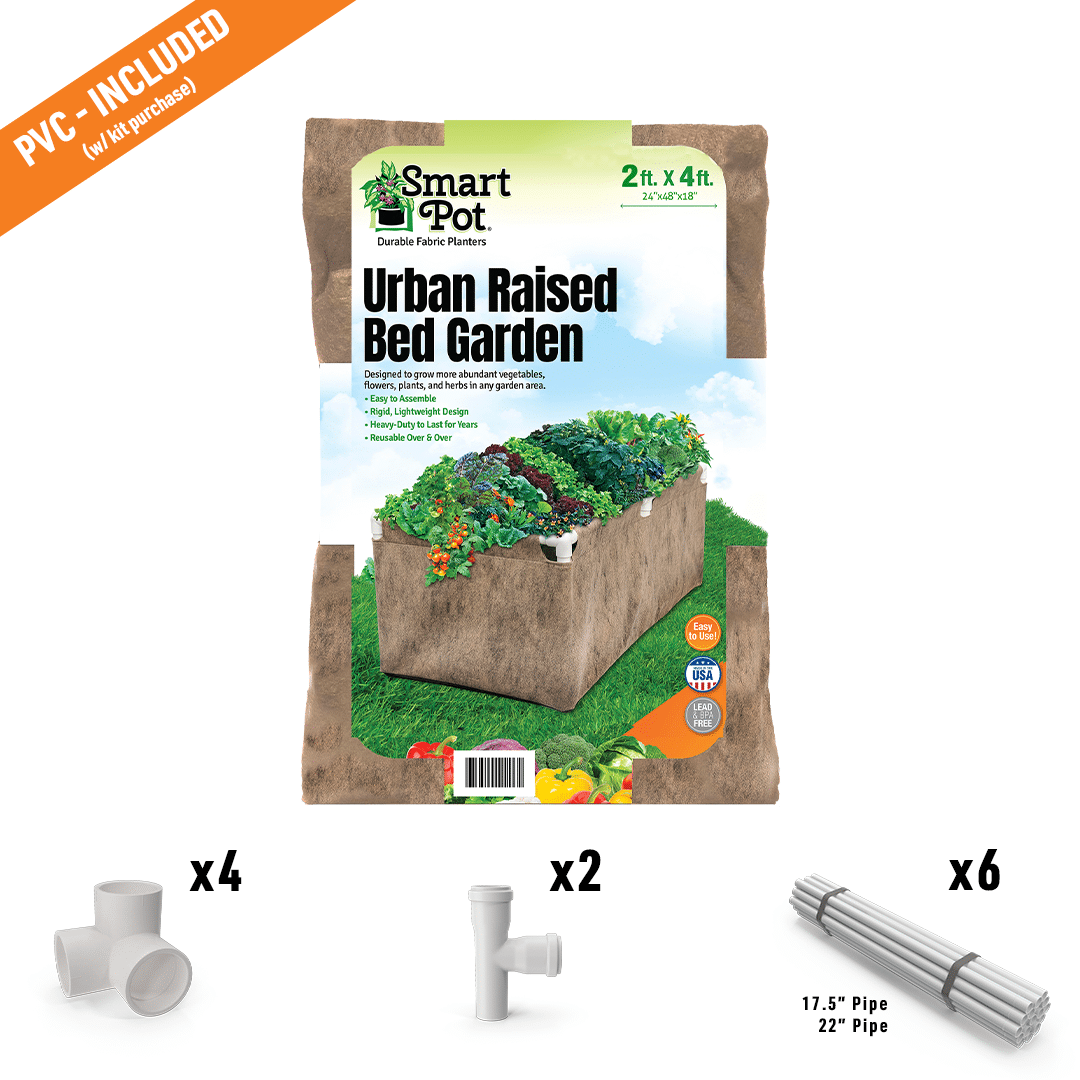

Here is what you need:

(1) – 2' x 4' Urban Raised Bed
(4) – 1" x 21 ¾ PVC Pipe
(2) – 1" x 22" PVC Pipe
(6) – 1" x 17 ½" PVC Pipe
(2) – 1" PVC T's
(4) – 1" 3-way PVC fittings
(12) – 1" self-tapping screws
Approximately 12 cu. ft. of soil (2 ft. × 4 ft. × 18″ high)

Here are the six easy steps:

1. Unfold your new Smart Pot Urban Garden Bed

2. Connect all four 17 ½" pieces of pipe separately to the 3-way fittings. *Note: Use a sponge or cloth with soapy water to connect the fittings if you're not using PVC glue.*

3. Slide one of the 21 ¾" pipes through the sleeve longwise and connect with the 3-way fitting. Slide the other 21 ¾ "through and connect to the three-way fitting.

4. Connect the two pieces of pipe in the middle with one PVC T and connect one 17 ½ "pipe downwards.

5. Slide the two 22" pipes through the sleeve widthwise and connect to the 3-way fitting

6. Screw 1 of the self-tapping screws on top of each 3-way fittings 1" from the end. Or use PVC glue for a permeate bond.

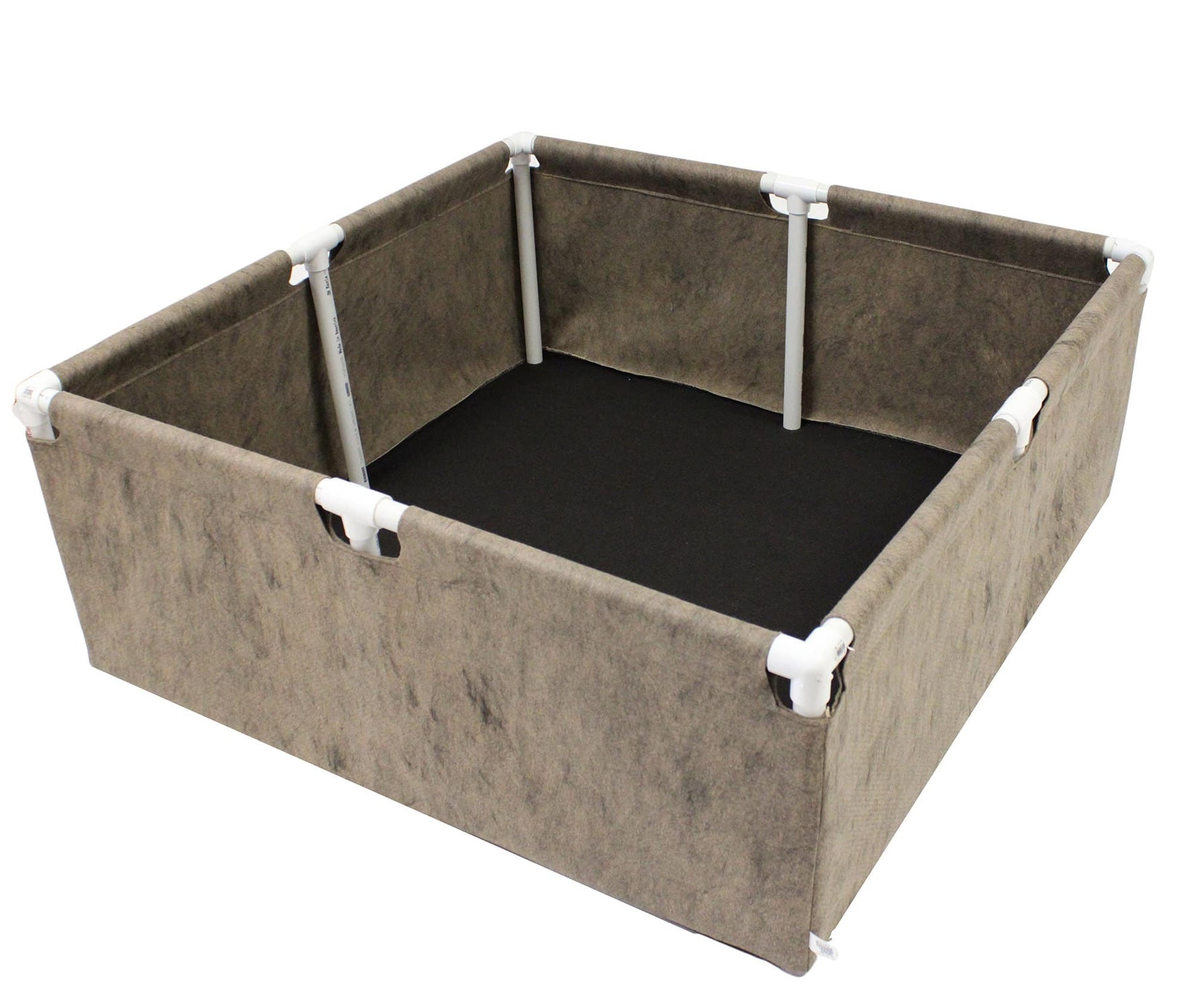

4'x4′ Urban Raised Bed

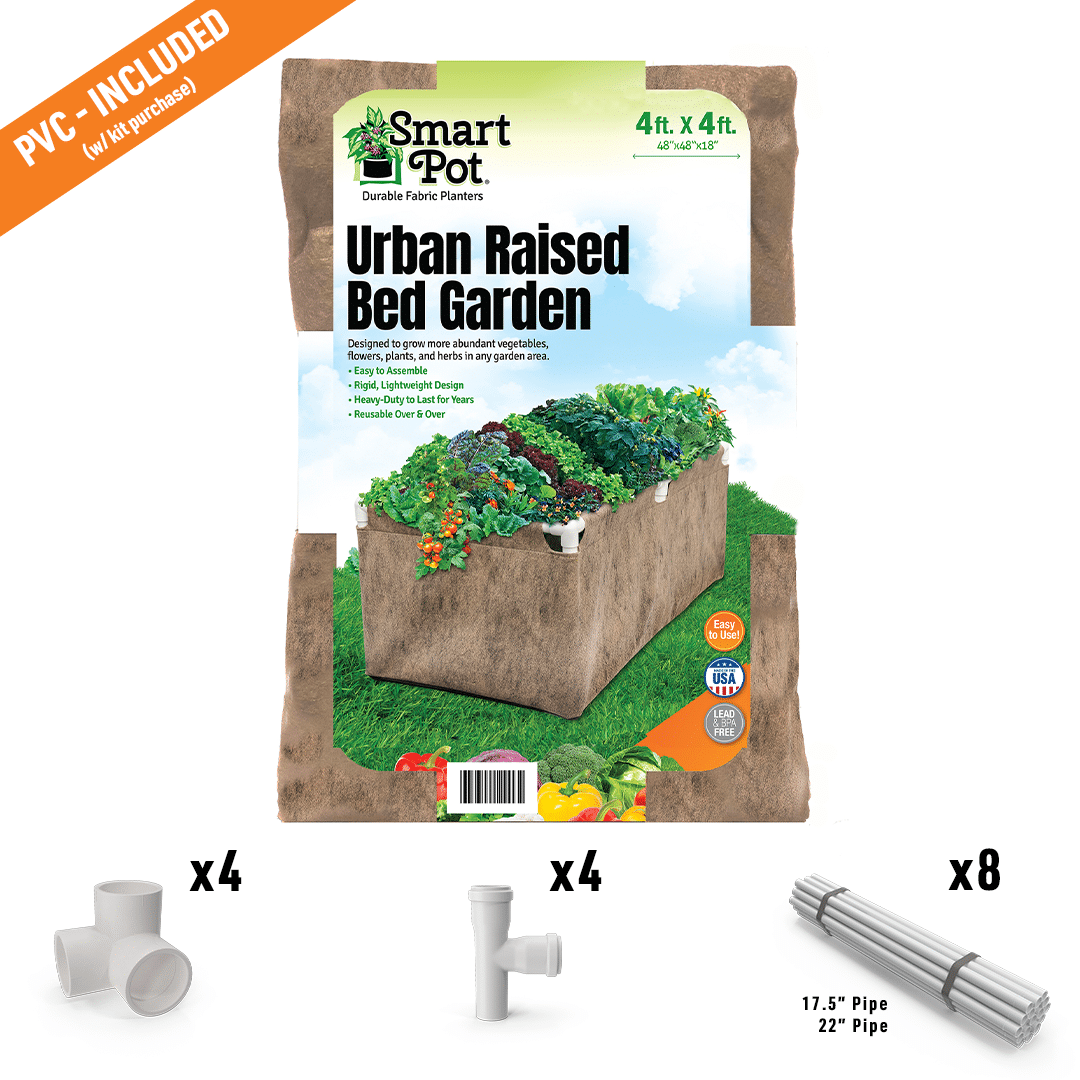

Here is what you need:

(1) – 4' x 4' Raised Bed
(8) – 1" x 21 ¾ PVC Pipe
(8) – 1" x 17 ½" PVC Pipe
(4) – 1" PVC T's
(4) – 1" 3-way PVC fittings
(12) – 1" self-tapping screws
Approximately 24 cu. ft. of soil (4 ft. × 4 ft. × 18″ high)

Optional: (16) 1" Self Tapping Screws or PVC Glue

Here are the six easy steps:

1. Unfold your new Smart Pot Urban Garden Bed

2. Connect all four 17 ½" pieces of pipe separately to the 3-way fittings. *Note: Use a sponge or cloth with soapy water to connect the fittings if you're not using PVC glue.*

3. Slide one of the 21 ¾" pipes through the sleeve and connect with the 3-way fitting.

4. Slide the other 21 ¾ "through and connect to the three-way fitting.

5. Connect the two pieces of pipe in the middle with one PVC T and connect one 17 ½ "pipe downwards. Repeat steps 3 – 5 to connect the remaining pipes and fittings.

6. Screw 1 of the self-tapping screws on top of each 3-way fittings 1" from the end. Or use PVC glue for a permeate bond.

Soil planning note: these are geometric capacity estimates from the assembled dimensions. Actual fill varies with fabric shape, watering headroom, and settling.
